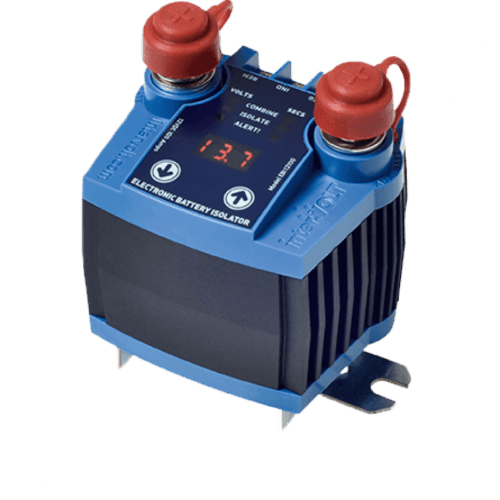

Intervolt Electronic Battery Isolator Programmable VSR Smart Dual Control Car EBI12100A

Description

Battery isolator from interVOLT. The EBI Pro is a revolution in dual battery control devices.  Unlike conventional electro-mechanical isolators the EBI Pro is solid state.  Solid state means no moving parts.  There are no contacts to vibrate, chatter, arc, wear and ultimately – fail.  The MOSFET based topology of the EBI Pro is proven.  Reliability, durability and longevity are built in.

Specifications

Volts:	12
Weight (kg):	0.5
Warranty:	2 years

Additional Information

Overview In many vehicles, particularly 4WD or RV applications, there is a requirement to automatically charge a second (or auxiliary) battery from the starting (or main) battery. This is a well proven concept and is usually only limited by the constraints of the device used in the installation. These constraints have now been overcome by the introduction of the EBI Pro. The EBI Pro is a revolution in dual battery control devices.  Unlike conventional electro-mechanical isolators the EBI Pro is solid state.  Solid state means no moving parts.  There are no contacts to vibrate, chatter, arc, wear and ultimately – fail.  The MOSFET based topology of the EBI Pro is proven.  Reliability, durability and longevity are built in. The solid state aspect is just the beginning.  Designed on the back of the ground-breaking PSR, the EBI Pro is also adjustable in terms of voltage and time delay.  This provides the installer or operator with the means to customise the EBI Pro for the application rather than suffer the ‘one size fits all’ philosophy from manufacturers of traditional devices.

Features

We’ve already touched on the solid state, MOSFET based topology and the programmability function but there are a host of other features designed into the product which sets the EBI Pro well and truly apart from the competition. These are expanded upon in greater detail in the manual (see downloads) but can be summarised as follows:

• Clear LED status display and indicators for ease of operation;
• 100 Amps continuously rated with a generous 500 Amps peak;
• Dual sensing allows main battery to be charged from auxiliary;
• Output indicator function for convenient in-vehicle monitoring;
• Input for in-vehicle remote emergency combine switch (starting);
• Overload and short circuit protection with automatic shutdown;
• Over temperature protected with automatic thermal shutdown;
• Low input voltage sensing with automatic shutdown protection;
• Electronics are encapsulated in dust and water proof housing;
• Compact design can be mounted in any position that suits;
• Heavy duty construction designed for under-bonnet installations;
• 24 months warranty (subject to policy terms and conditions).

Specifications

Topology – solid state Mosfet (metal oxide semiconductor field-effect transistor) switching circuit Application – for 12VDC in-vehicle dual battery installations only Input Voltage – 8-17VDC nominal Control Voltage – The COMBINE (on state) voltage limits are user adjustable in 0.1 Volt increments from 9.2 Volts to 16.0 Volts The ISOLATE (off state) voltage limits are user adjustable in 0.1 Volt increments from 9.0 Volts to 15.8 Volts Time Delay – both the COMBINE and ISOLATE time delay limits are user adjustable in 1 second increments from 1 to 250 seconds Alert Voltage – the ALERT! voltage limits are user adjustable in 0.1 Volt increments from 9.0 Volts to 15.9 Volts Constant Rating – 100 Amps DC continuous @ 60°C ambient temperature Surge Rating – 500 Amps DC at <50°C for a period of 5 seconds @ 10% duty cycle Contact Resistance – across switch terminals <2.0 milliohm @ 25°C Indicator Output Signal – 30mA maximum (current limited) Device Current Draw – In 'Isolate' mode (open contacts) <30mA In 'Combine' mode (closed contacts) <40mA Add ≈ 10mA when LED Status Display is active Add up to 30mA for external LED indicator if connected Environmental considerations – Operating temperature range is -25°C to + 60°C. Humidity should not exceed 90% Environmental Protection – Electronics sealed for dust and water protection to IP67 rating (internal components only) Safety and Protection Devices – Thermal overload shutdown – automatic reset Electrical overload protection – automatic reset Under voltage disconnect – automatic reconnect High voltage disconnect – automatic reconnect User Interface – the user or operator interface is used to control and monitor the various functions of the EBI Pro. The user interface consists of a 3 digit LED display, 6 set point indicators and 2 control buttons. Refer to operator manual for detailed information on setting the EBI Pro parameters. Connections – Switch Terminals – – Main (starting) battery positive – marked MAINBATT – Auxiliary (second) battery positive – marked AUX BATT Connections – Control Terminals – Main negative input for sensing 0V – marked NEG Alert trigger indicator output 12V – marked IND Remote emergency combine switch input 12V – marked REM Termination – Switch Terminals – M8 threaded stud, tin plated copper, 304 stainless steel hardware Control Terminals – M3 threaded contacts, tin plated brass, 304 stainless steel hardware Construction – Manufactured using corrosion resistant materials throughout. Electronics are epoxy encapsulated for protection against vibration, dust, water and for thermal dissipation purposes – Housing – black E-Coat die cast aluminium Lid and Base – Injection moulded Polycarbonate Mounting bracket – Bright zinc plated steel Conformity – Conforms to Australian and New Zealand Electro-Magnetic Compatibility (EMC) standards under AS/NZS CISPR 11:2004 Dimensions – Footprint – 62mmW x 92mmL overall Profile – 94mmH overall (including terminal boots) Weight – 495 grams.
